Response Route AS/400

Introduction: Phase 6.

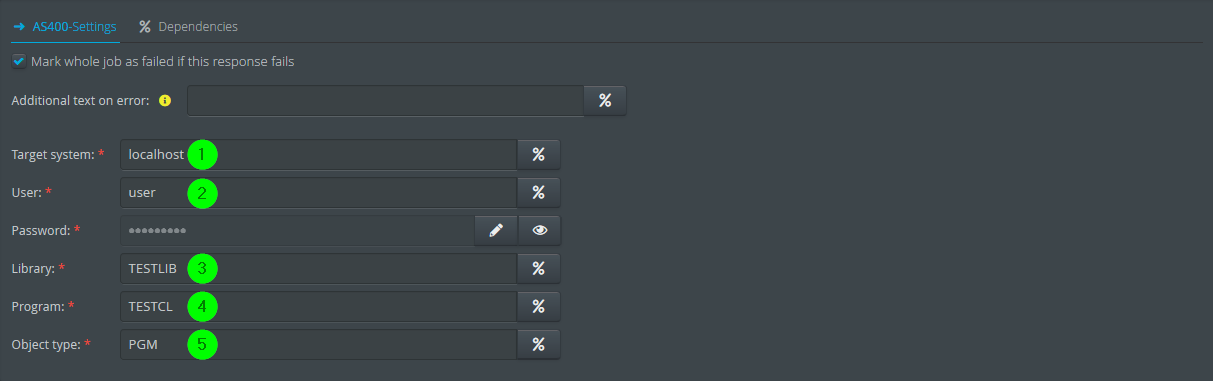

images/download/attachments/34215059/AS400_1_EN-version-1-modificationdate-1554188148000-api-v2.png

(1) DNS name or IP address of the remote computer.

(2) User and password to authenticate on the remote computer.

(3) Name of the program library.

(4) Name of the called program.

(5) The object type should be PGM.

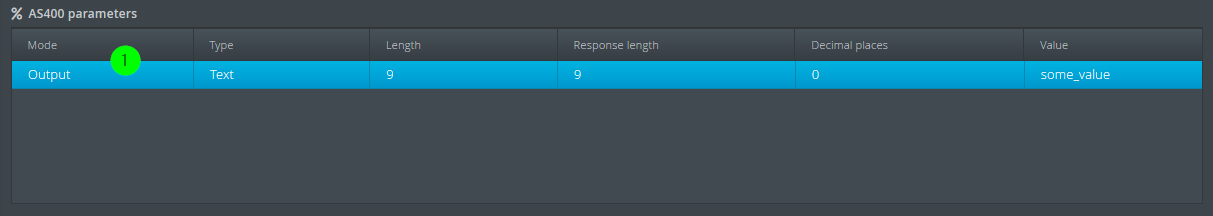

The following screenshot shows the settings for parameters.

images/download/attachments/34215059/AS400_2_EN-version-1-modificationdate-1554188148000-api-v2.png

(1) A new entry can be created via the context menu. Possible modes are Input, Output and Input/Output. Note: The parameters are only defined for a correct call, no values of output parameters are returned to the Response Route.
