Response Route AS2

Introduction: Phase 6 and AS2 with Lobster_data.

Note: The AS2 service must be licensed and activated on the Integration Server to use this Response Route. Please contact our support or sales staff.

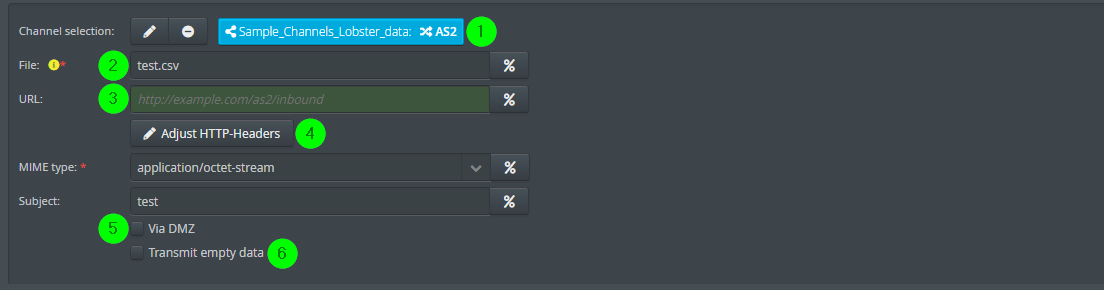

(1) Here you have to select a channel of type AS2.

(2) Name of the output file. The possibilities for generating file names are described in the section File Names, File Patterns and Paths.

(3) In this field, the URL defined in the channel can be overwritten. If a value is entered here, changes to the URL that are made in the chosen communication channel (partner channel) do not affect this Response Route. The field is optional. The protocol can be http or https. If the server expects an HTTP authentication, user and password can be entered in the URL: http://<user>:<pass>@<server>.<domain>:<port>/<alias>.

(4) When clicking this button, a dialogue for entering additional HTTP headers appears. Variables can be used for both the header name and the value. Syntax: @<variable name>@. When using ASM, the additional headers are passed in the metadata.

(5) Specifies whether the sending is to be done by the Integration Server directly or via the DMZ server. If no DMZ is configured, this checkbox has no effect. The partner must be configured via a channel, otherwise, the checkbox will be deactivated when saving the Response Route.

(6) If this checkbox is set, empty files are transferred as well.
