Data Queue (Input Agent)
Introduction: Phase 1.
For reading entries from a data queue on an AS/400 system.
A data queue is checked in a specifiable interval. Note: If a data queue is read at intervals of more than one minute, all entries in the data queue are read and processed. If the interval is less than one minute, a maximum of 50 entries is read and processed per readout operation.
Each read-out data queue entry leads to a separate job.
Afterwards, you can, for example, use an ID read from the data queue to read the actual data from a database via SQL.

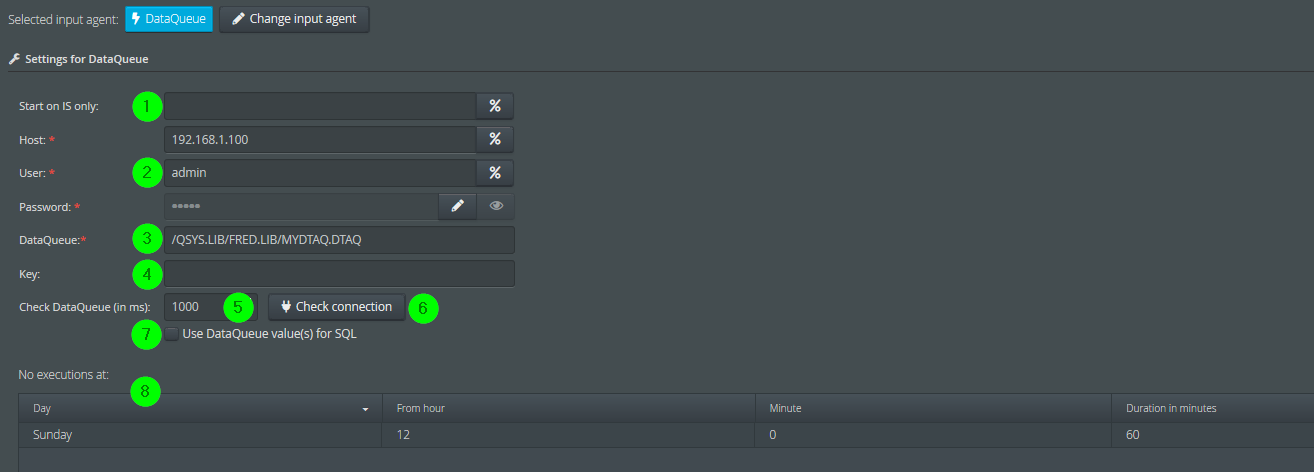

(1) Only relevant for the add-on module Load Balancing to start the profile on a specific node.
(2) DNS name or IP address of the AS400 host, the user and the password.
(3) Name of the data queue to be queried.
(4) If it is a keyed data queue, the key of the values to be queried must be entered here.
(5) Interval in which the data queue is queried.
(6) Testing access to the configured data queue.
(7) See next section below.
(8) The querying of the data queue can be suspended for defined periods of time.

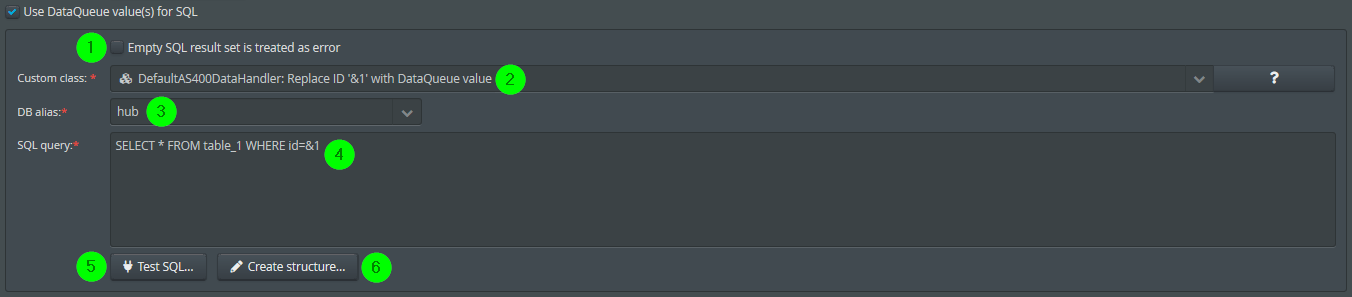

Using a Returned Data Queue Entry in an SQL Query
The string read from the data queue can be used by the Input Agent in a subsequent SQL query.
(1) If this checkbox is set, the profile will be aborted with an error if the SQL query does not return any data.
(2) You can specify a custom class to handle the data retrieved from the data queue. The default custom class specified here replaces the placeholder &1 of the SQL query in (4) with the value read from the data queue. Note: You have the option of implementing your own classes. Lobster_data provides a programming interface (API) that also allows you to develop your own components in Java. We offer in-depth training for this. If you are interested, please contact our support or sales staff.
(3) The selection menu contains all existing database aliases. A database alias is a previously configured connection to a database. Note: For details about database connections, see the Admin Console documentation.
(4) SELECT query to read data from the database (3). Only a single SELECT query can be specified.
(5) Executes the SQL query. If the SQL query contains a * for all columns, the actual names of the columns are read from the database and are used to substitute the * in the SQL query. Example: SELECT * FROM table_1 might become SELECT col1, col2, col3 FROM table_1.
(6) The columns of the SQL statement are created as fields below a newly created node in the source structure. Existing mapping instructions are retained. The data types and field lengths of the columns are taken from the database.
