Process View
To be able to use the functionality Process View, you already need to have created Data Flow entries in the Designer (as we did before in the example). The Process View allows you to display jobs of chained profiles. You can open a processed profile chain in the Process View either via the Control Center or directly via a known job number.
Open Process View via Control Center

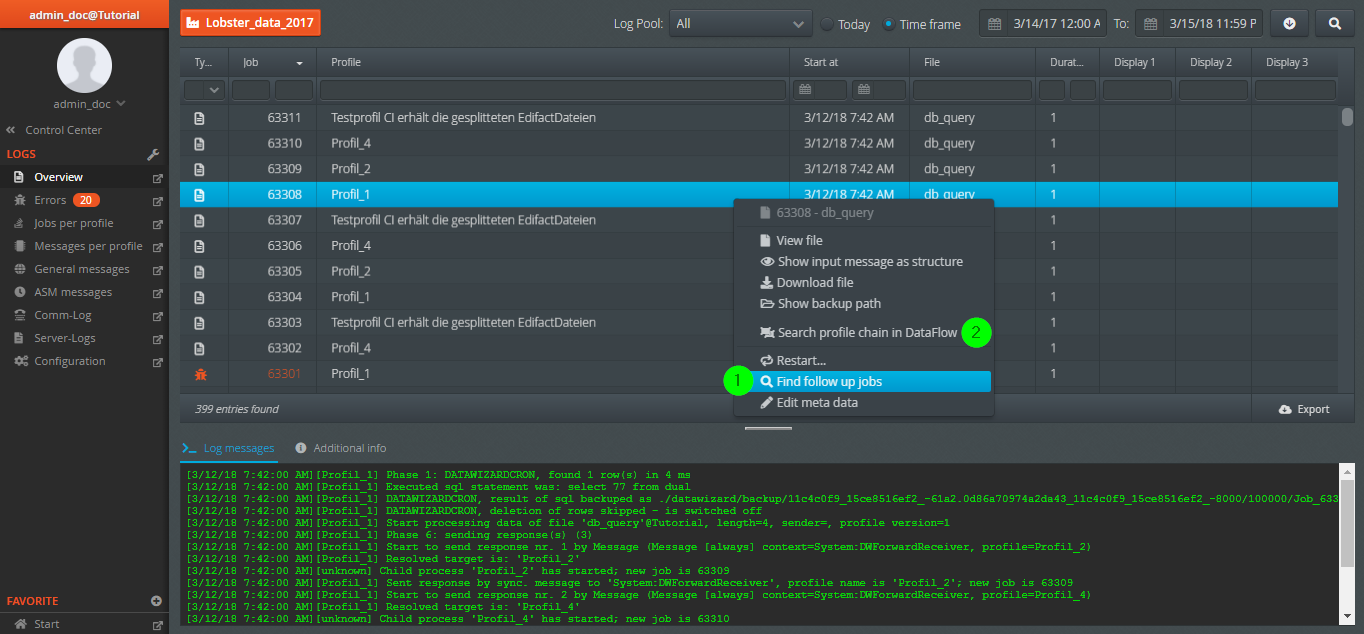

Go to the Job Overview of the Control Center and select an entry. To make sure that it is a job of a profile chain, you can (but you don't have to) select context menu item (1). If more than one entry appears in the overview, the job is usually part of a processed profile chain. Now select (2).

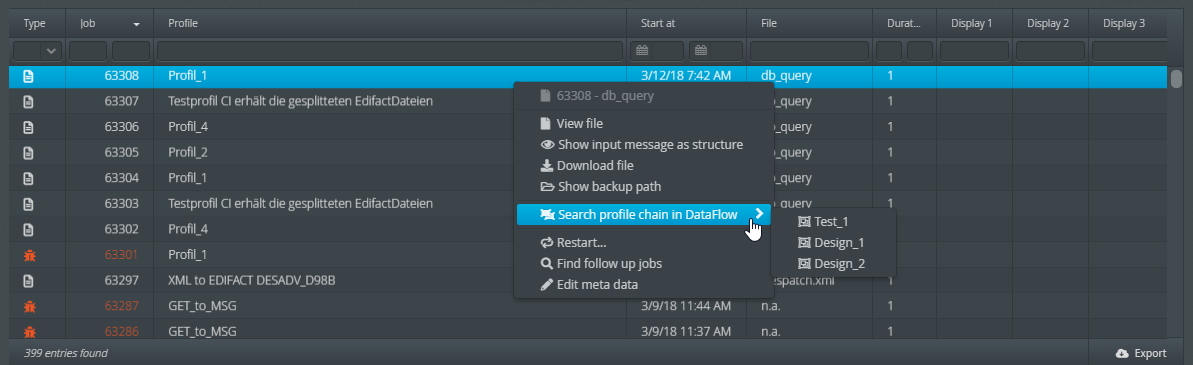

Multiple Designs Fit
If several Data Flow entries are found, they can be selected in a further sub-menu.

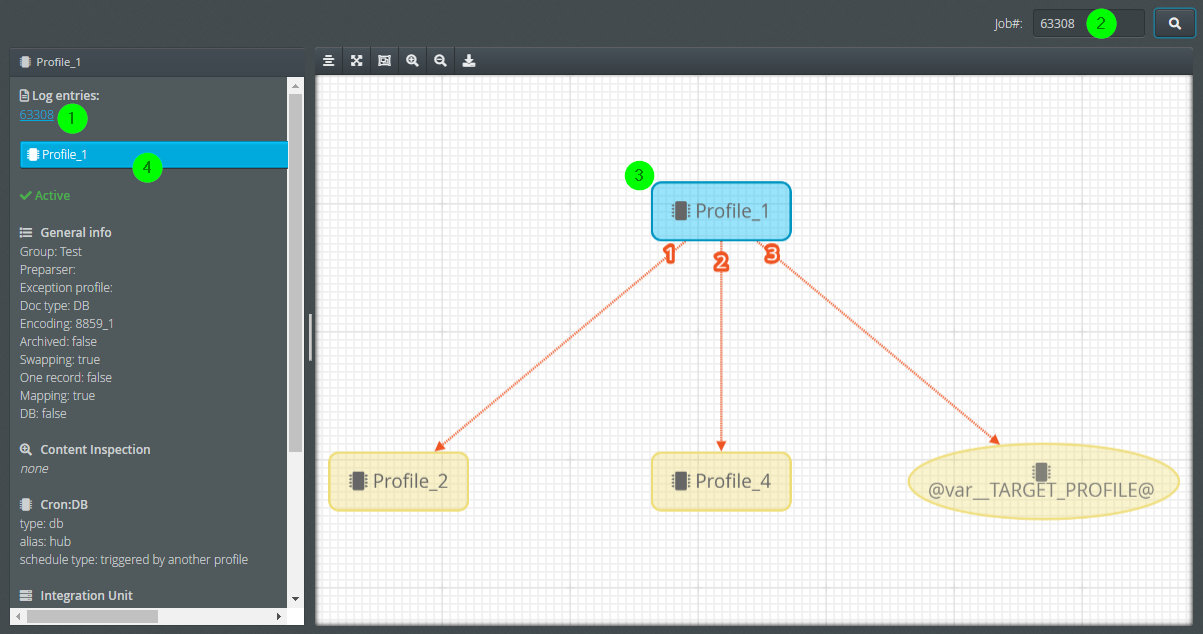

Process View
If a Data Flow entry is opened via the context menu, the profiles are directly linked to the job number. So if a profile is marked in (3), you will see the corresponding job number in (1). A click on it leads directly to the corresponding job in the overview of the Control Center.
Alternatively, you can also search for a job number directly in the Process View (2).
Details to a selected profile (3) are shown in (4).
