Transmission Type SAP ALE
See also section Transmission (→ metadata).

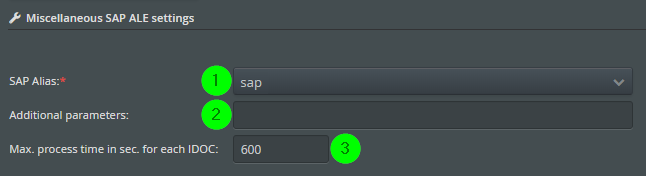

(1) The SAP alias of the connected system (see section SAP).
(2) The following additional parameters are accepted.
|
<empty field> |
All segments are sent to SAP. That is the default case. |
|
mode=default |
Only segments starting with E, Y or Z are sent to SAP. |
|
mode=uppercase |
Only segments that do not begin with a lowercase letter are sent to SAP. |
|
mode=regex;regex=... |
Only segments that match the regular expression are sent to SAP. |
|
<any other, non-empty content> |
Only segments that do not start with lowercase letters r or p are sent to SAP. |
You can also specify the path to a text file in the additional parameter. The file then contains the parameter. The purpose of this parameter is to send only parts of the destination tree to SAP and to be able to also use the destination tree for another Response Route. You could, for example, trigger a subsequent profile before or after you send to SAP, which then receives additional data (the rest of the destination tree) in addition to the IDoc segments.
(3) The maximum allowed processing time in seconds of a sent IDoc document. If exceeded, the ASM entry is marked as erroneous.
