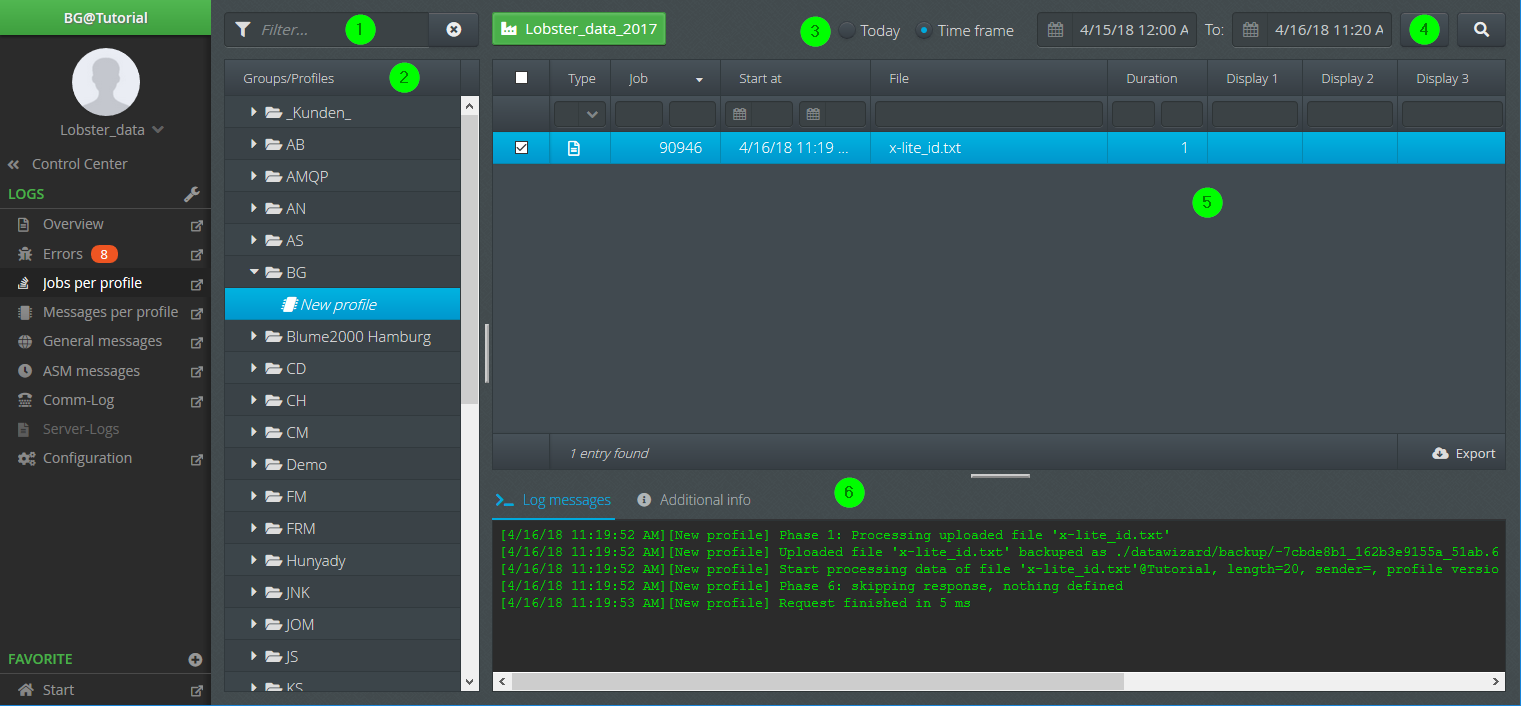

Search Mask

(1) Here a profile can be searched for with a keyword. After a successful search, the located profiles will be shown as a list instead of the group/profile tree. The wildcard * can also be used, e.g. Company*AS2*send.

(2) Here a profile can be searched for within the group/profile tree. See also section Context Menu of a Profile below.

(3) To show a current list of the search period, please click the magnifying glass symbol.

(4) With this button, the extended search can be opened (see next screenshot).

(5) The list of the located jobs of a profile. See also section Context Menu of a Job below.

(6) The log messages of a marked job in (5). Note: Marked text can be copied to the clipboard with Ctrl+C. Ctrl+A marks the whole log text. If available, the trace file can be opened with a right-click and viewed on page Server Logs.

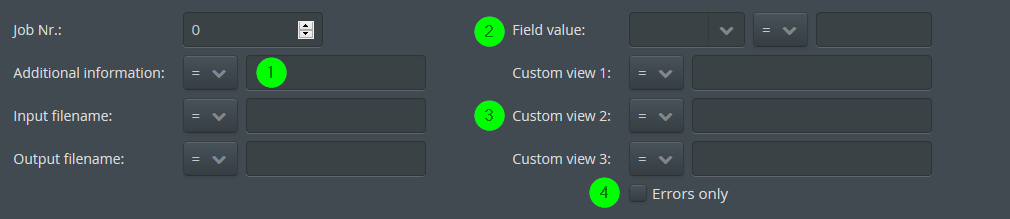

Advanced Search

(1) Here the search can be limited to a (partial) term, that has been entered into the log with function log info(a).

(2) If the attribute Log field value of a destination field of the profile is set to Yes and a value is given for attribute Name for logging, the value of the destination field will be written into the job log of the profile with the key Name for logging. In the left part of this field here, such a key can be chosen and in the right part of the field, you can specify a value.

(3) Relates to the identically named columns. For details on these custom columns see function set display column(a,b,c).

(4) If this checkbox is set, only jobs that match the search criteria and ran into an error are shown.

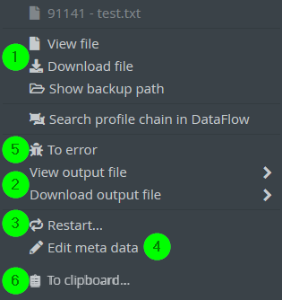

Context Menu of a Job

With a right-click on a job line, you can open the associated context menu.

(1) Opens the input file in the Lobster_data editor or downloads it on a local computer. The file to be displayed has to have been created with a Response Route of type File that had the checkbox Is backup of target data set.

(2) Like (1) for output files.

(3) Opens the restart dialogue for this job.

(4) Opens an additional metadata editor, in which you can view and edit variables that are available in the metadata.

(5) Opens an erroneous job right on subpage Errors.

(6) In a further dialogue, the job number, profile name and file name can be copied.

Context Menu of a Profile

(1) If the backup files were indexed, you can search within them here.

(2) You can view the path under which all the backup files for this profile are written.
