select nodes from XML/DOM to List( a, b, c, d, e )

Group

XML


The function stores the XPath expression from the XML/DOM object a in a list c from the root directory on up to the specified XPath expression b.

You can optionally create a concatenated XPath expression out of values b and d. It is also possible to set specific namespaces using a map, which can be defined with parameter e. Existing namespaces with the same name will be replaced.

The function returns the number of nodes in the result set.

Description of Parameters

Parameter

Description

a

Name of XML/DOM object.

b

XPath expression (selection of a specific set of nodes).

c

Name of the list.

d

Optional XPath expression.

e

Name of the map for the namespace management.

Examples

The following XML file is used.

Invoice.xml
<Invoice>
<user>
<customer_number>12345</customer_number>
<first_name>Gustav</first_name>
<last_name>Thalmeier</last_name>
<place>Treuchtlingen</place>
<birthday>15.07.1981</birthday>
<order>
<article_id id="123689">DE459363258</article_id>
<quantity>1</quantity>
<price>17.98</price>
</order>
<order>
<article_id id="5896324">459363298</article_id>
<quantity>1</quantity>
<price>4.99</price>
</order>
</user>
<user>
<customer_number>85639</customer_number>
<first_name>Henriette</first_name>
<last_name>Michlmeier</last_name>
<place>Breckerfeld</place>
<birthday>04.12.1975</birthday>
<order>
<article_id id="9832475">DE459362358</article_id>
<quantity>1</quantity>
<price>199.59</price>
</order>
<order>
<article_id id="123659">459363258</article_id>
<quantity>3</quantity>
<price>7.99</price>
</order>
<order>
<article_id id="123689">DE459363258</article_id>
<quantity>1</quantity>
<price>14.99</price>
</order>
</user>
</Invoice>

For each user, we want the customer number and the item number that does not begin with DE.

images/download/attachments/44931660/select_nodes_from_xml_en-version-1-modificationdate-1573710566783-api-v2.png

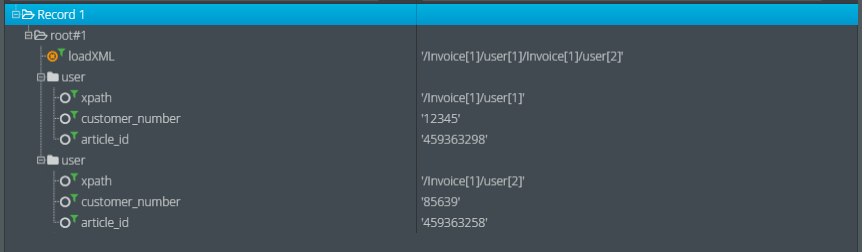

In the calculation field loadXML the list is issued (separated by |) with all XPath expressions to value user. In the first row of the table below, the parameters for these functions are listed. The node user drags on the list list_user_data. In the field xpath of the respective XPath expression is listed for each node. In the fields customer_number and article_id the evaluated data is issued. In addition, the value of the field article_id, are stored in a list list_article_id with the function described here. The XPath expression is obtained from the parameter d (in this case /Invoice/user) and the second parameter specified below c (/order[article_id>0]/article_id) composed. The set parameters can be found in row two in the table.

Parameter a

Parameter b

Parameter c

Parameter d

Result

xml_Invoice

//user

list_user_data

2

xml_Invoice

/order[article_id>0]/article_id

list_article_id

xpath

2
