X.400 (Channel Settings)

See also: General Channel Settings, Mail (Input Agent Cron) and Response Route X.400.

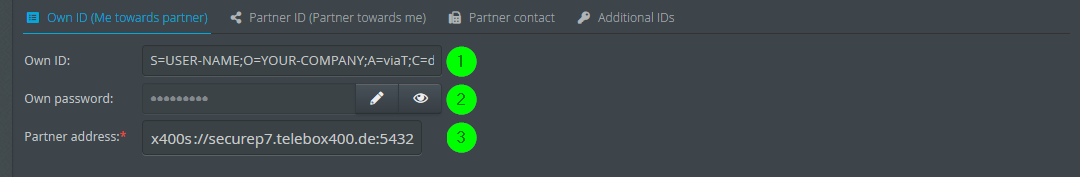

Before describing the specific settings for X.400, we go back to the already described area for the access data, since there are a few special features for X.400.

(1) Your X.400 address, e.g. S=USER-NAME;O=YOUR-COMPANY;A=viaT;C=de.

(2) Your password that you received from your X.400 provider.

(3) In Germany, for the X.400 provider Telekom, the URL is x400s://securep7.telebox400.de:5432. Ask your provider if necessary.

For the partner access, the corresponding data of the partner system must be entered. Enter the X.400 address of your partner in field Partner ID.

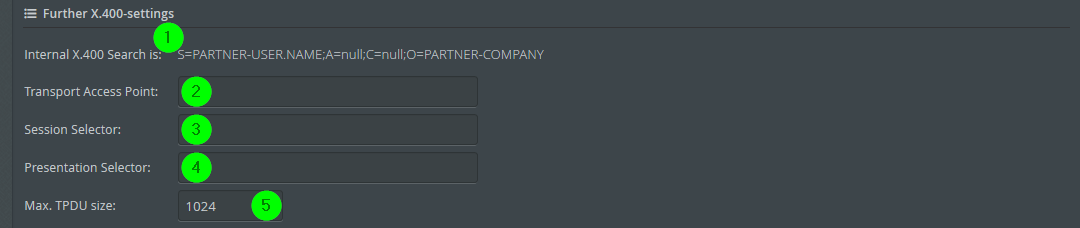

The other settings for X.400 are settings which control the connection buildup over all OSI levels.

(1) The internal X.400 search term. The internal search term is used in Lobster_data to assign an incoming X.400 message to a channel. The search term is taken from the Partner ID on page Partner Access (partner to you).

(2) The Access Point for the transport layer (OSI level 4).

(3) The Session Selector for the session layer (OSI level 5).

(4) The Presentation Selector for the presentation layer (OSI level 6).

(5) The maximum size of the Transport Protocol Data Unit in kB.

Note: The program UAFI is not supported.
