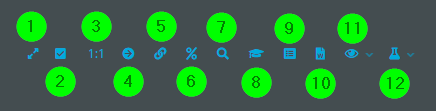

Top Menu Bar (Mapping)
(1) Full-page mapping view.
(2) Single or multiple selections of nodes and fields in the structures.
(3) See sections Mapping - Filling a Record of the Destination Tree and especially 1:1 Mapping.

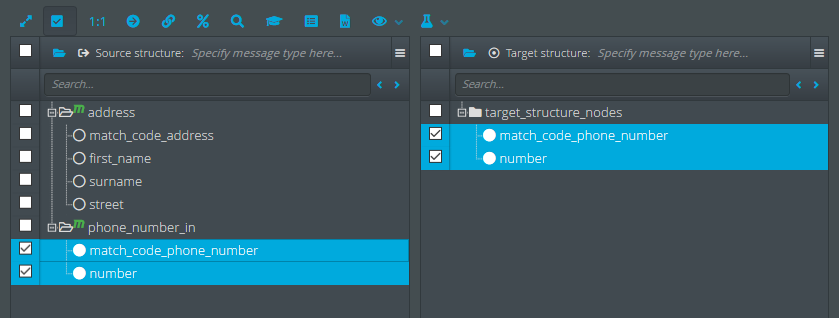

(4) The selected fields of the source structure will be created in a selected node of the destination structure and mapped accordingly. Please also note (2).

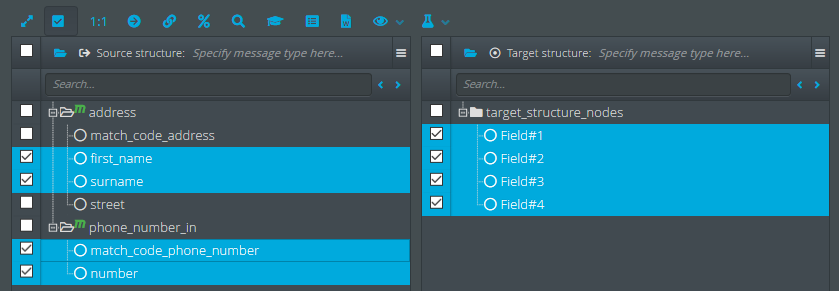

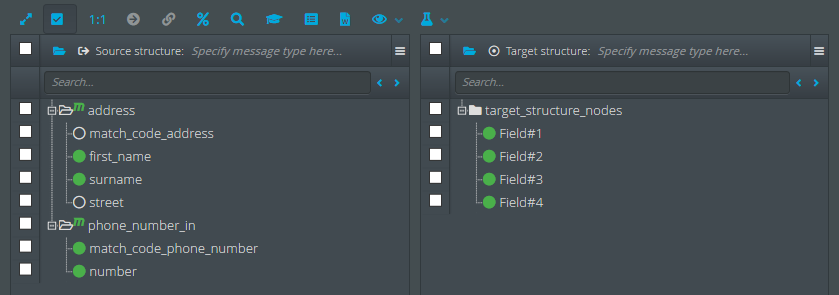

(5) The selected fields in the source and destination structure are mapped in sequence.
(6) You can define variables and constants in another dialogue. See also sections Profile Variables and System Variables.
(7) This opens the Search and Find dialogue, in which all mappings between source and destination fields are displayed. In addition, various search functions are available.
(8) You can open another dialogue in which a list of all the available elements (fields) and their meaning are listed for X12 and EDIFACT. If you have selected a destination structure field, the meaning and the available values for this field are displayed. You can double-click to transfer selected values to the selected field of the destination structure as a fixed value.
(9) Opens another window that displays a compact view of the configured mapping. Via the context menu, the mapping setting (mappings, functions) can be exported as an XML file and imported again in the same way. This can be useful if you want to replace one or both of your structures with modified structures and restore the original mapping. All nodes and fields involved in the mapping must be present in the new structures for the import to work.
(10) A documentation of selected nodes and fields of the source and destination structure can be created here in a Word-like format (copy the generated content and paste it into your external documentation). The content of the node and field attributes Description will also be output. The general description of a profile should be given in the area Info (General Data).
(11) Here you can configure the mapping view.

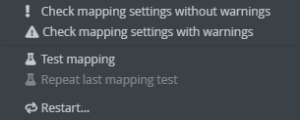

(12) See section Mapping Test (here you can also get your mapping settings automatically checked and trigger a restart).
