Profile Search

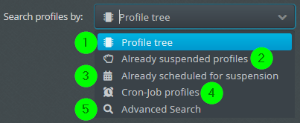

There are several ways to search for a profile you want to suspend.

(1) Here you can manually search the profile in a tree structure.

(2) Only manually suspended profiles will be displayed.

(3) Only profiles suspended via the timer will be displayed.

(4) Only profiles with a time-driven Input Agent will be displayed.

(5) See separate section Advanced Search below.

Suspension

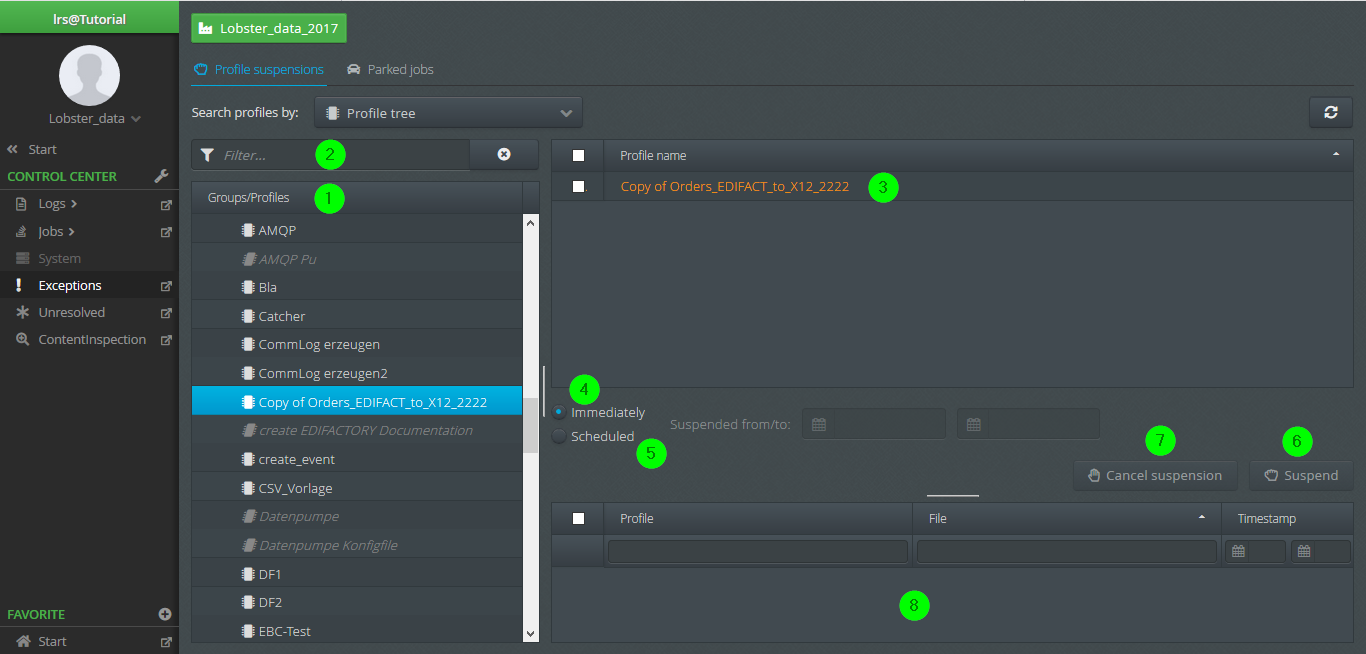

The following explanations cover search options (1) to (4) of the first screenshot. Of course, the profile tree is only displayed for (1).

(1) For this search setting here (see (1) in the screenshot above), the profiles are displayed in a tree (arranged in groups).

(2) The filter field can be used to search for a specific profile name. The wildcard * can also be used, e.g. Company*AS2*send.

(3) The found profile.

(4) The marked profile is instantly suspended after a click on (6). Such profiles are displayed in orange.

(5) You can specify a time frame in which to suspend the profile. Such profiles are displayed in normal colours (so white for active profiles and grey for inactive profiles), however, they can be recognised by the time information in (5) and are listed in (3) of the first screenshot.

(6) Instant (4) or timed (5) suspension of the marked profile.

(7) You can cancel a suspension here.

(8) This is where parked jobs are displayed.

Advanced Search

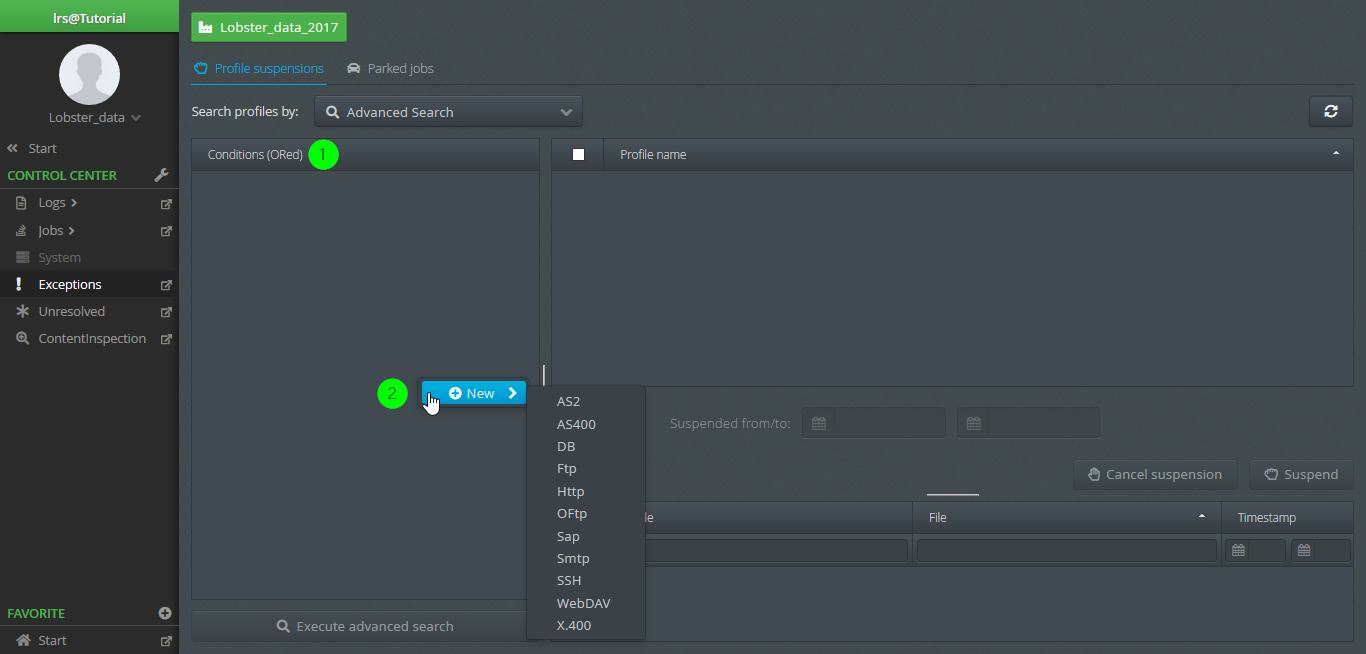

This covers point (5) of the first screenshot. Using the advanced search, profiles can be searched based on the channels they are using (AS2, FTP, HTTP, OFTP, SMTP, SSH and X.400). However, other criteria can also be used, e.g. the alias (DB and SAP), the URL (WebDAV) or the host (AS400).

(1) All conditions (the channels) listed in the field below are OR linked.

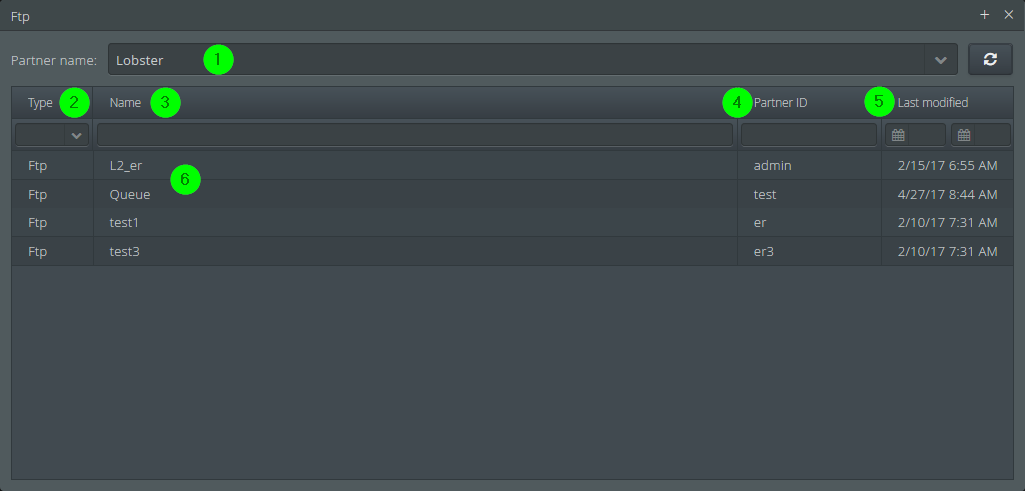

(2) Further conditions can be added via the context menu (right-click). Another window opens (the following screenshot is for an FTP condition).

(1) Select a partner from the list of all available partners.

(2) The type of the channel.

(3) The name of the channel.

(4) The ID of the partner set in the channel.

(5) The time when the last change was made to the channel.

(6) List of all channels of the partner.

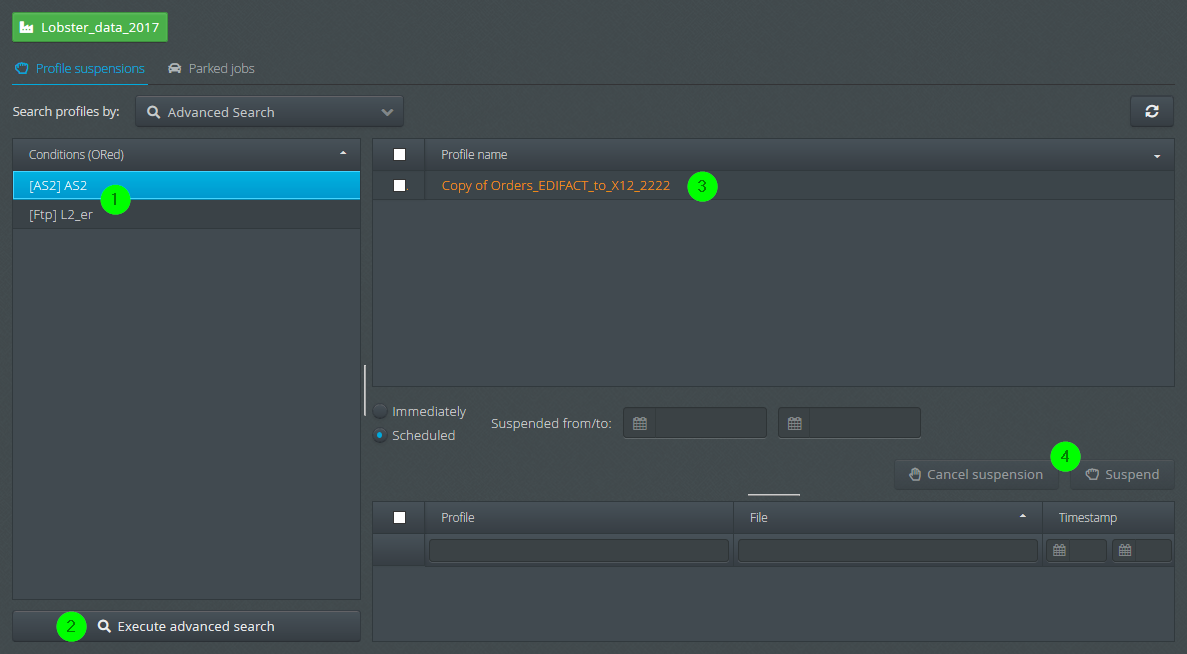

(1) The selected (OR linked) conditions (as shown in the screenshots before).

(2) After clicking here, the search result will be displayed in (3).

(3) The list of found profiles.

(4) Here a selected profile can be suspended or its suspension can be cancelled.
