StorageService
The StorageService is used for temporary storage (within the main memory) or longer-term storage of data by the Integration Server, which can be found using a simple ID.
Persistently storing data requires the use of a PersistentManager (see below).
XML Configuration
Note: If you want to modify the configuration file for a service directly in the file system, you will find the appropriate file in the configuration file ./etc/factory.xml. Details about the configuration can be found in the respective documentation of a service. Otherwise, you can edit the configuration file directly via the respective service in the GUI.
Setting the Standard Waiting Time
The following XML fragment sets the amount of time between two validity checks of the stored values.
<Set name="waitTime">5000</Set>The waiting time is specified in milliseconds.
Setting a PersistentManager
The following XML fragment sets and activates the DefaultPersistentManager for the StorageService. The argument that is passed during the initialisation of the DefaultPersistentManager represents the directory in which the objects are to be saved.
<Call name="setPersistentManager"> <Arg> <New class="com.ebd.hub.services.storage.DefaultPersistentManager"> <Arg>./logs/storage</Arg> </New> </Arg></Call>The following XML fragment sets and activates the JDOPersistentManager for the StorageService. The argument that is passed during the initialisation of the JDOPersistentManager represents the database alias to be used.
<Call name="setPersistentManager"> <Arg> <New class="com.ebd.hub.services.storage.JDOPersistentManager"> <Arg>hub</Arg> <Set name="optimizeTables">true</Set> </New> </Arg></Call>Lobster recommends a Redis database in a Load Balancing environment. The following XML fragment sets and activates the RedisPersistentManager for the StorageService
<Call name="setPersistentManager"> <Arg> <New class="com.ebd.hub.services.storage.RedisPersistentManager"> <Arg>redis://localhost:6379</Arg> <Arg>my password</Arg> </New> </Arg></Call>If you want to migrate existing entries from the JDOPersistentManager, it is sufficient to specify the database alias of the JDO manager.
<Call name="setPersistentManager"> <Arg> <New class="com.ebd.hub.services.storage.RedisPersistentManager"> <Arg>redis://localhost:6379</Arg> <Arg>my password</Arg> <Set name="jDOAlias">hub</Set> <!-- only needed to migrate from JDOPersistentManager --> </New> </Arg></Call>
If a Redis cluster is to be addressed (here consisting of 3 machines node1, node2 and node3), the following XML fragment can be used
<Call name="setPersistentManager"> <Arg> <New class="com.ebd.hub.services.storage.RedisPersistentManager"> <Arg> <New class="java.util.HashSet"> <Call name="add"> <Arg> <New class="redis.clients.jedis.HostAndPort"> <Arg>node1</Arg> <Arg type="int">6379</Arg> </New> </Arg> </Call> <Call name="add"> <Arg> <New class="redis.clients.jedis.HostAndPort"> <Arg>node2</Arg> <Arg type="int">6379</Arg> </New> </Arg> </Call> <Call name="add"> <Arg> <New class="redis.clients.jedis.HostAndPort"> <Arg>node3</Arg> <Arg type="int">6379</Arg> </New> </Arg> </Call> </New> </Arg> <Arg>my password</Arg> </New> </Arg></Call>General Settings

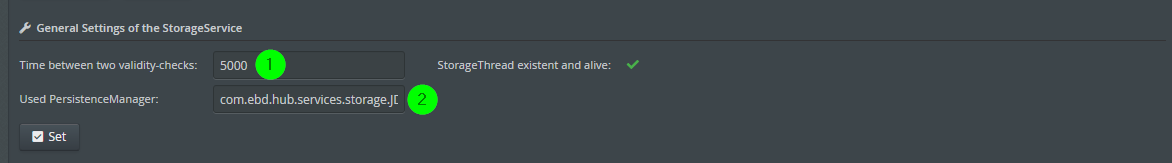

(1) The amount of time between two validity checks of the stored values.
(2) The used PersistenceManager and the directory in which the objects to be stored are to be stored.
Currently Managed Objects

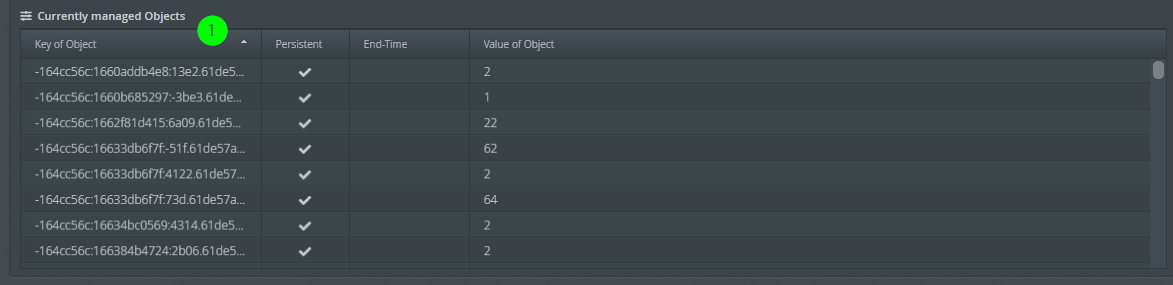

(1) The list of currently managed objects. The unique key is displayed, whether the object is stored persistently, the time until the object is removed when it is no longer accessed, and the value of the object if it can be displayed. The context menu can be used to delete an object from memory.
Log Level Dependencies
Changes to the log level of the LogService have no influence on the logging behaviour of the StorageService.
If the service is set to verbose mode, the keys of all added and removed entries are recorded in the log.
