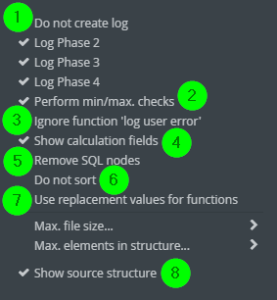

Settings (Mapping Test)

(1) Here you can set whether you want to log for the test and for which phases.

(2) If this option is set, the entries of the source structure properties Minimum, Maximum and Mandatory field for fields of the destination tree are checked during the execution of the mapping test.

(3) Any existing functions log user error(a,b,[c]) are ignored.

(4) Fields marked as calculation fields appear in the output.

(5) Nodes in the destination tree whose attribute Only for SQL has the value Yes are excluded from the destination tree.

(6) There is no sorting of the destination tree nodes using the attributes Sort field and Sorting.

(7) See section Replacement Values for Functions.

(8) If the source structure has been filled with data, it can be removed by removing the tick.
