Search and Find
You can open this dialogue via the upper menu bar in phase 3.

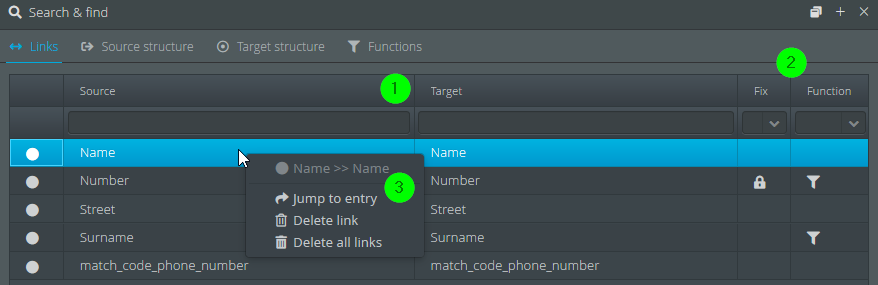

Mappings
This view allows you to easily search for mapped fields.
(1) Here you will see all source structure fields mapped to destination structure fields.
(2) Functions and fixed values on destination structure fields.
(3) Using the context menu, you can jump directly to the corresponding fields or delete the mapping.

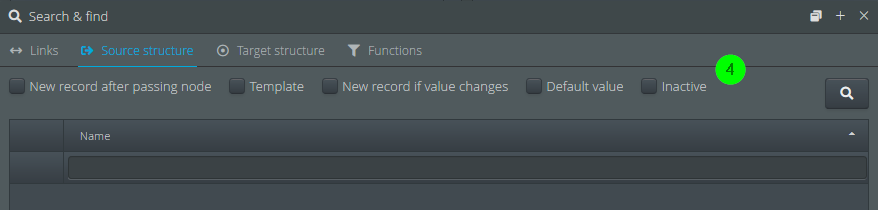

Source Structure
(4) Here you can search for source structure fields/nodes with set attributes New record after, Template, New record if value changes, Default value and Inactive.

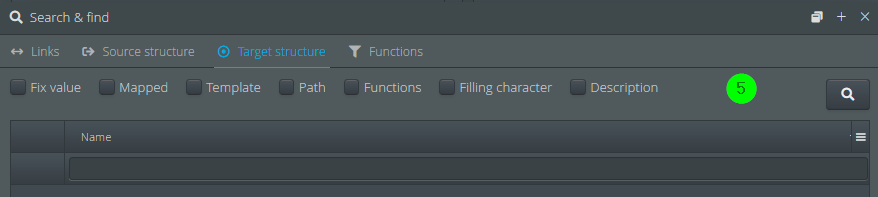

Destination Structure
(5) You can search for destination structure fields/nodes with set attributes Fix value, Template, Path, Filling character, Description and for mapped fields and fields with functions.

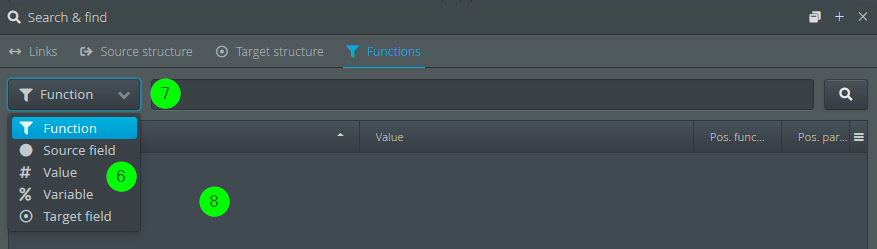

Functions
You can search in functions (on destination fields). What is searched for and what you get as a result is described in the table below.
|
(6) |
(7) Search Term |
(8) Result |
|
Function |
(Partial) name of the searched function. |
The field in the destination structure that uses this function. |
|
Source field |
(Partial) name of the source field that is used as a parameter in a function. |
The field in the destination structure that contains the function that uses the source field as a parameter. |
|
Value |
(Partial) value that is used in a function. |
The field in the destination structure that contains the function that uses the value as a parameter. |
|
Variable |
(Partial) name of the variable that is used as a parameter in a function. |
The field in the destination structure that contains the function that uses the variable as a parameter. |
|
Target field |
(Partial) name of the destination field that is used as a parameter in a function. |
The field in the destination structure that contains the function that uses the destination field as a parameter. |

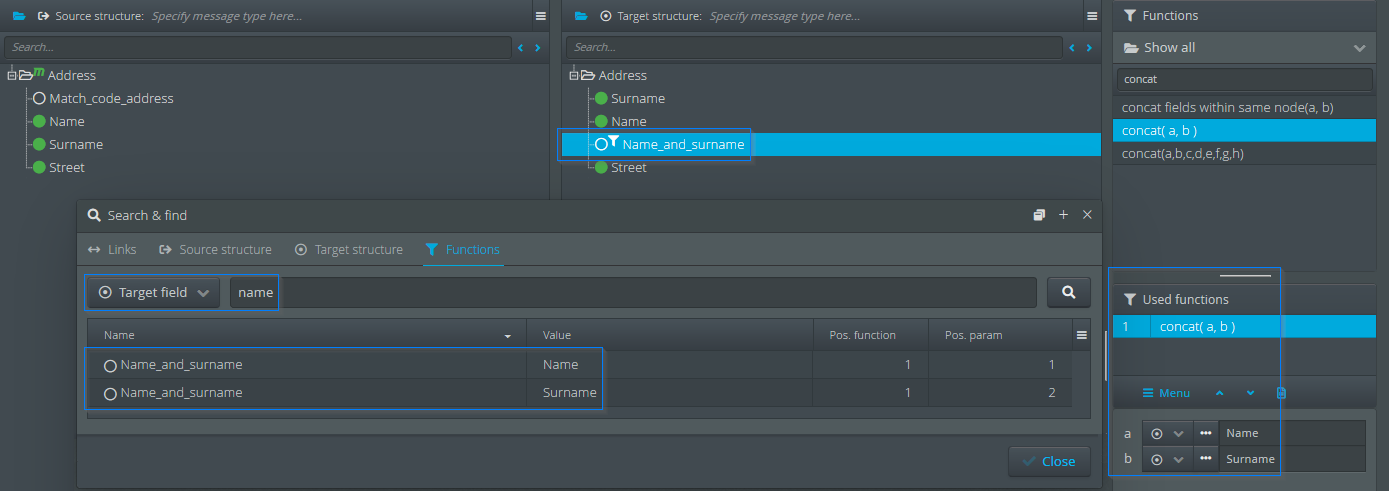

Example
We are searching for fields in the destination structure that use a destination field with the partial name name as a parameter in a function.
As a result, we get the destination structure field Name_and_surname twice, because the concat function is used on that field, which uses the destination structure fields Name and Surname as parameters.
