M@gic EDDY Importer

The M@gic EDDY importer allows you to automatically create a profile mapping out of a M@gic EDDY programme (Crossgate). Currently, only conversions from or to EDIFACT are supported. The other side is the STDDAT database table. Note: The importer does not set paths for the nodes of the generated destination structure. The user has to assign paths if necessary.

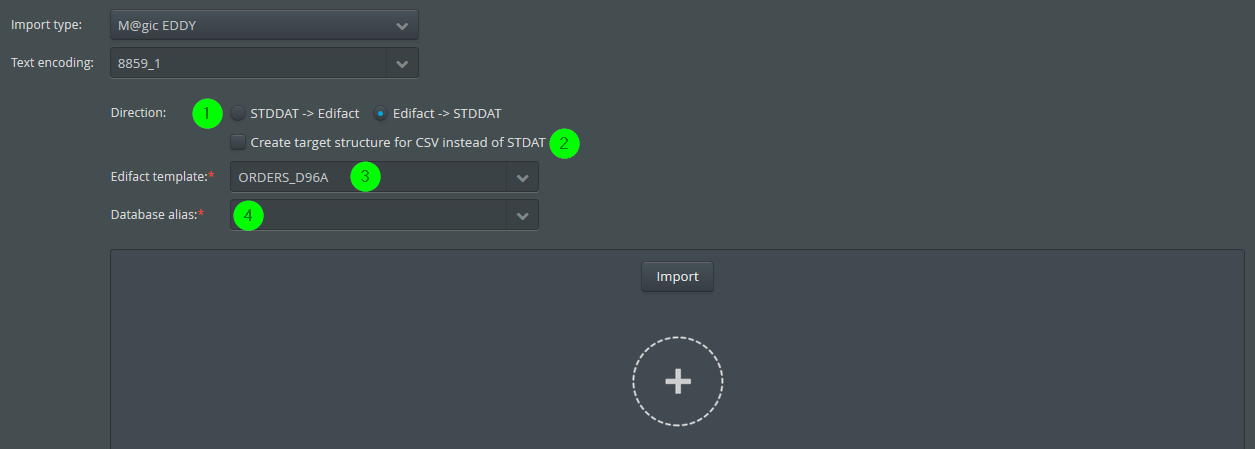

images/download/attachments/21304537/Magic_Eddy_EN-version-1-modificationdate-1533011956000-api-v2.png

(1) Selection of the data direction.

(2) A 'normal' CSV destination structure is created instead of one fitting the STDDAT table.

(3) Selection of a template for a specific EDIFACT format.

(4) Selection of the database alias under which the table STDDAT is located.
