Loading an IDoc Structure from SAP Repository

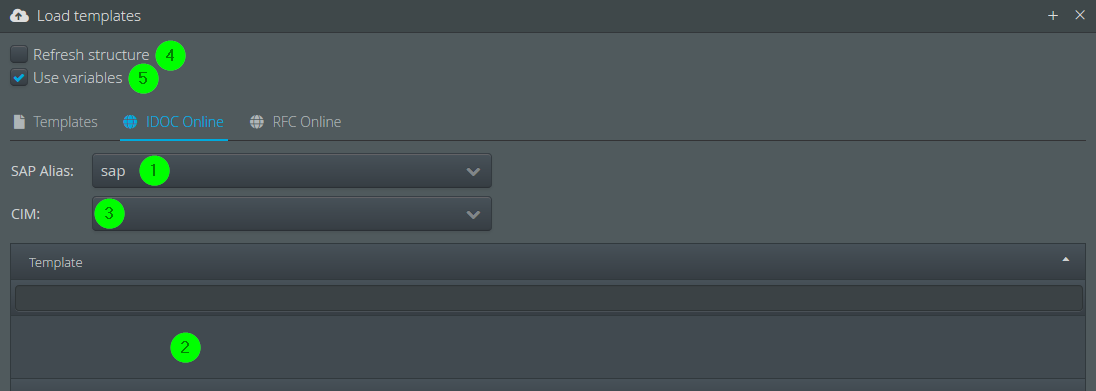

The following screenshot shows the dialogue for importing an IDoc structure from the repository of a connected SAP system.

images/download/attachments/21303691/SAP_6_EN-version-1-modificationdate-1527688706000-api-v2.png

(1) The SAP alias of a connected system (see configuration file ./etc/sap.xml).

(2) After selecting the alias (1), the list of available IDoc types is read from the repository of the SAP system and displayed.

(3) After selecting an IDoc type in the list, the customer adjustments (CIM) existing for this basic type are read from the SAP Repository and displayed, if available.

(4) and (5) See items (3), (4), (5) in section Loading an IDoc Structure from Lobster_data.
