Group	Integration Units
Class Name	com.ebd.hub.datawizard.iu.JsonCreationUnit
Function	This Integration Unit generates a JSON document from the destination tree.

Description

Introduction: Integration Units.

The class JsonCreationUnit generates a JSON document out of the destination tree. See also ExtendedJsonCreationUnit.

The encoding of the file is always UTF-8. Each record creates an object {content}. Multiple records are written into a list [{content1},{content2}].

If the destination structure node attribute XML/JSON handling is set to Exclude, the JsonCreationUnit will not process the node.

Numbers after a # in field and node names are ignored during the JSON generation. See the creation of arrays below.

Parameter Description

Parameter Name	Allowed Values	Default Value	Description
Escape < and >	true, false	false	The characters < and > are escaped by this Integration Unit. The result is < und > This option should be set to true if the Integration Unit is used for the Portal. This can prevent JavaScript injection.
Force array creation for nodes with max > 1	true, false	true	If true, nodes with Maximum > 1 will always create an array, even if the nodes were only entered once.
Pretty print	true, false	false	If true, the JSON file is formatted.
Resolve OData names	true, false	false	A name like @company.com would be allowed in JSON but is escaped in this Integration Unit. The result would be __at__company__dot__com If you do not want those characters to be escaped, set the option to true.
Start at node	<nodeName>		If a node name is set, the creation of the JSON file starts with this node. Without node name, the complete tree is created.
Use description as field/node name	true, false	false	If set to true and the field/node attribute Description has a value, the value of the attribute is used instead of the field/node name in the JSON file.
Use transparent nodes	true, false	false	If true, the destination node attribute XML/JSON handling=Transparent will be considered. See the notes below in the example.
Write empty fields not as null	true, false	false	If true and parameter Write empty/null field values is also true, value "" will be used instead of value null.
Write empty/null field values	true, false	false	If true, fields with set Empty Flag will be included in the JSON document with value null. See also parameter Write empty fields not as null.
Write top level nodes as objects	true, false	true	If true, all nodes on root level will create separate objects, e.g. {"node_name":{"content"}}. If false, the content of those nodes will be written directly.
Write values type safe	true, false	false	If true, fields of type Integer, Float, Double, BigInteger, BigDecimal and Boolean will not be written in quotes. Important note: This setting has no effect if a template is used.

Example

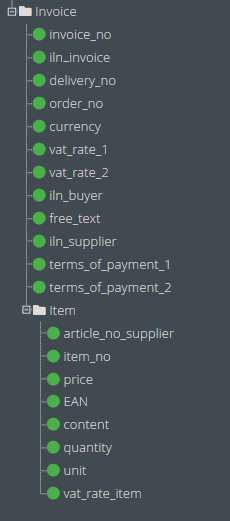

The following destination tree is used to create a JSON document.

images/download/attachments/73598425/JSONCreation_1_EN-version-1-modificationdate-1619151111783-api-v2.png

If the parameter Write top level nodes as objects is set to true, the following file will be created.

demo1.json

{"Invoice":
    {
    "invoice_no":"4711",
    "iln_buyer":"400000045687",
    "iln_supplier":"123456789",
    "delivery_no":"0815",
    "item":[
        {"article_no_supplier":"87490","EAN":"3654878784","content":"Sausage","unit":"pcs","quantity":"200","item_no":"1","price":"30","vat_rate_item":"19"},
        {"article_no_supplier":"8786767","EAN":"546546","unit":"pcs","quantity":"1","item_no":"2","price":"56"}
    ],
    "invoice_no":"08154711",
    "vat_rate_1":"19",
    "vat_rate_2":"7",
    "currency":"EUR"
    }
}

If the parameter Write top level nodes as objects is set to false, the file will look like this.

demo2.json

{
    "order_no":"4711",
    "iln_buyer":"400000045687",
    "iln_supplier":"123456789",
    "delivery_no":"0815",
    "item":[
        {"article_no_supplier":"87490","EAN":"3654878784","content":"Sausage","unit":"pcs","quantity":"200","item_no":"1","price":"30","vat_rate_item":"19"},
        {"article_no_supplier":"8786767","EAN":"546546","unit":"pcs","quantity":"1","item_no":"2","price":"56"}
    ],
    "invoice_no":"08154711",
    "vat_rate_1":"19",
    "vat_rate_2":"7",
    "currency":"EUR"
}

Transparent Nodes

Nodes marked blue have the destination structure node attribute XML/JSON handling=Transparent.

Following the results depending on the Integration Unit parameter Use transparent nodes.

Destination Tree	Result (Use transparent nodes = true)	Result (Use transparent nodes = false)

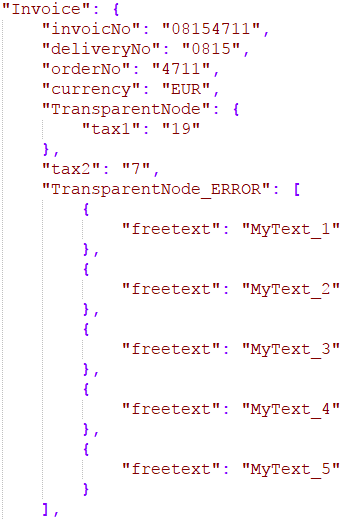

The same transparent node must not be created multiple times. If that happens, the Integration Unit aborts with an error. Note: For transparent nodes with the attribute maximum > 1, a warning is output in the log.

Destination Tree

Result (Use transparent nodes = true)

Result (Use transparent nodes = false)

-->

Error: transparent node 'TransparentNode_Error' may not have more than one iteration

images/download/attachments/73598425/image2017-5-2_20_45_0-version-1-modificationdate-1619151111812-api-v2.png

However, it is possible to use multiple transparent nodes. As you can see in the example, the values of fields with the same name are then summarised (as you already know: value#1 and value#2 become value in the JSON document). Note: This is effectively an array (see below).

Destination Tree	Result (Use transparent nodes = true)	Result (Use transparent nodes = false)

Arrays

An array can be created by using single fields with the same name. Everything after the # in the field name will be ignored. So ArrayValue#1-3 becomes ArrayValue.

Destination Structure	Result

Alternatively, simple arrays/lists can be generated with a node/field combination. The node may only contain one field. The field name has to be like the node name plus the suffix _val. The node is traversed several times.

Destination Structure	Result
