The call of the function call-sap-rfc(alias a,rfc b,[inMap c,timeout d,filter e,outList f,debug g,h,i,j,k]) is shown using RFC_READ_TABLE as an example. The interface description can be retrieved using Lobster_data and looks like follows.

RFC_READ_TABLE

Input Parameters

Parameters: INPUT
Index:	1	2	3	4	5
Name:	DELIMITER	NO_DATA	QUERY_TABLE	ROWCOUNT	ROWSKIPS
Type:	CHAR	CHAR	CHAR	INT	INT
Size:	1	1	30	4	4
Offset:	0	1	2	32	36
Decimals:	0	0	0	0	0
Default:	SPACE	SPACE		0	0
Value:			" "

Output Parameters

None

Table Parameters

Parameters: TABLES
Index:	1	2	3
Name:	DATA	FIELDS	OPTIONS
Type:	TABLE	TABLE	TABLE
Size:	4	6	7
Offset:	0	4	10
Decimals:	0	0	0
Value:	TAB512	RFC_DB_FLD	RFC_DB_OPT

Table: DATA (TAB512) No. of Rows: 0 Row-length: 512 (chars) 512 (bytes)
Index:	1
Name:	WA
Type:	CHAR
Size:	512
Offset:	0
Decimals:	0

Table: FIELDS (RFC_DB_FLD) No. of Rows: 0 Row-length: 103 (chars) 103 (bytes)
Index:	1	2	3	4	5
Name:	FIELDNAME	OFFSET	LENGTH	TYPE	FIELDTEXT
Type:	CHAR	NUM	NUM	CHAR	CHAR
Size:	30	6	6	1	60
Offset:	0	30	36	42	43
Decimals:	0	0	0	0	0

Table: OPTIONS (RFC_DB_OPT) No. of Rows: 0 Row-length: 72 (chars) 72 (bytes)
Index:	1
Name:	TEXT
Type:	CHAR
Size:	72
Offset:	0
Decimals:	0

The description shows the following parameters that are needed to be set in order to call the RFC.

Parameter Name	Type	Meaning	Field Names Within That Parameter
DELIMITER	Field Char(1)	A delimiter to separate single values within a response line.	n.a.
NO_DATA	Field Char(1)	X if no data but only the field information is needed.	n.a.
QUERY_TABLE	Field Char(30)	Name of the database table to read from.	n.a.
ROWCOUNT	Field Integer	Number of rows to read.	n.a.
ROWSKIPS	Field Integer	Number of rows to be skipped before ROWCOUNT rows are read.	n.a.
DATA	Table(OUT)	Contains the read rows after a successful call.	WA Char(512)
FIELDS	Table(INOUT)	Information about the fields being read or - if set in the request - the columns to be read from the table.	FIELDNAME Char(30) OFFSET Numeric(6) LENGTH Numeric(6) TYPE Char(1) FIELDTEXT Char(60)
OPTIONS	Table(IN)	Text being added to the internally used SQL statement and regarded as the WHERE part of the statement.	TEXT Char(72)

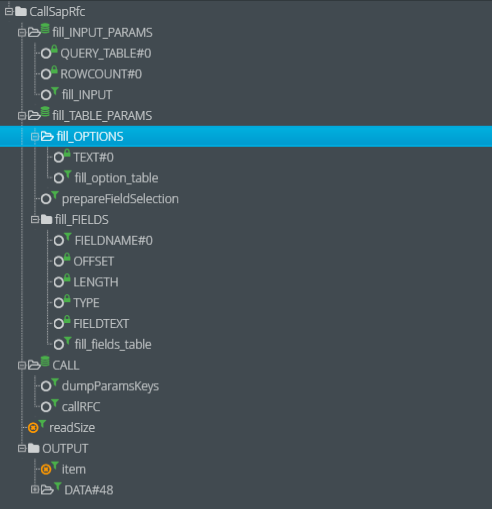

To prepare and perform the RFC call, a destination structure like the following can be prepared.

images/download/attachments/44944003/sap_rfc_1-version-2-modificationdate-1582512204148-api-v2.png

In general, the node CallSapRfc can be organised into two main parts.

Creation of the map that contains all values being needed. Because the RFC in this example does not have any parameters of type structures only two nodes filling the field parameters (node fill_INPUT_PARAMS) and table parameters (node fill_TABLE_PARAMS) are used.
Call of the RFC in the node CALL containing an additional field dumpParamsKeys thatis only used to dump keys and values of the parameter map. This can, for example, be used e.g. in a mapping test.

Filling Values into the Parameter Map

The fields in the nodes are named exactly like the names of the fields in the corresponding parameter (in this case fields and tables, everything following after a # is ignored).

The goal of this example is reducing the number of fields to be read. This is realised by using a list that is filled in the field prepareFieldSelection.

1) save variable a(b) type-safe
	a	constant: VAR_FIELD_SELECTION
	b	constant: MANDT,CARRID,CONNID,FLDATE,PRICE,CURRENCY,PLANETYPE

2) add to list(a,b,c)
	a	result: 1
	b	constant: fieldList
	c	constant: ,

3) count values in list(name of list a)
	a	constant: fieldList

4) save variable a(b) type-safe
	a	constant: VAR_SIZE
	b	result: 3

In every iteration of the node fill_FIELDS the first element of the list at that time is removed.

1) remove from list(position a, name of list b)
	a	constant: 1
	b	constant: fieldList

These are the functions of the single fill fields.

In field fill_INPUT

1) fill-map-from-fields( map a, prefix b, index c, hidden d )
	a	constant: inMap
	b	constant:
	c	constant:
	d	constant: false

In field fill_option_table

1) fill-map-from-fields( map a, prefix b, index c, hidden d )
	a	constant: inMap
	b	constant: OPTIONS[#]
	c	constant: 1
	d	constant: true

In field fill_fields_table

1) calculate and save variable(a,b,c,d,[e])
	a	constant: VAR_COUNTER
	b	constant: +
	c	constant: 1
	d	constant: true

2) fill-map-from-fields( map a, prefix b, index c, hidden d )
	a	constant: inMap
	b	constant: FIELDS[#]
	c	variable: VAR_COUNTER
	d	constant: true

dumpParamsKeys is only used to dump the keys and values of the parameter map to the log. To prevent this from happening when the mapping runs productively, the variable VAR_IS_TEST is checked.

1) dump map (a,b)
	a	constant: inMap
	b	variable: VAR_IS_TEST

The field callRFC contains the 'main' function for the call of the RFC.

1) call-sap-rfc( alias a,rfc b,[inMap c],[timeout d],[filter e],[outList f],[debug g])
	a	constant: testsap
	b	constant: RFC_READ_TABLE
	c	constant: inMap
	d	constant: 8
	e	constant: DATA[1}
	f	constant: outList
	g	constant: true

RFC Call

When starting the test, the dumParamKeys functions will log the following.

[...]
[M:] Dump of map inMap:
	'FIELDS[6]-LENGTH'='0'
	'FIELDS[5]-FIELDTEXT'=' '
	'FIELDS[3]-LENGTH'='0'
	'FIELDS[7]-OFFSET'='0'
	'FIELDS[1]-OFFSET'='0'
	'FIELDS[1]-FIELDNAME'='MANDT'
	'FIELDS[4]-LENGTH'='0'
	'FIELDS[4]-FIELDNAME'='FLDATE'
	'FIELDS[7]-TYPE'=' '
	'QUERY_TABLE'='SFLIGHT'
	'FIELDS[6]-FIELDTEXT'=' '
	'FIELDS[1]-TYPE'=' '
	'FIELDS[6]-TYPE'=' '
	'FIELDS[7]-FIELDTEXT'=' '
	'FIELDS[2]-FIELDTEXT'=' '
	'FIELDS[2]-LENGTH'='0'
	'OPTIONS[1]-TEXT'='CARRID = 'LH''
[...]
	'FIELDS[2]-OFFSET'='0'
	'FIELDS[5]-OFFSET'='0'
	'FIELDS[5]-LENGTH'='0'
	'FIELDS[1]-LENGTH'='0'
	'FIELDS[3]-FIELDNAME'='CONNID'
	'FIELDS[2]-TYPE'=' '
	'ROWCOUNT'='@VAR_ROWCOUNT@'
	'FIELDS[4]-OFFSET'='0'
[...]

For technical reasons, the key-value pairs are not sorted.

The call of the function call-sap-rfc(alias a,rfc b,[inMap c,timeout d,filter e,outList f,debug g,h,i]) leads to the following messages.

15:07:52.768 [M:] Calling SAP by RFC 'RFC_READ_TABLE'
15:07:52.893 [M:] rfc debug info: .\debug\sap\1319029672768_debug_RfcIn.xml
15:07:52.940 [M:] rfc debug info: .\debug\sap\1319029672768_debug_RfcOut.xml
15:07:52.940 [M:] Returning from SAP RFC 'RFC_READ_TABLE' after 172 ms
15:07:52.940 [M:field=callRFC] Executed function [Pos=1]call-sap-rfc( alias a,rfc b,[inMap c],[timeout d],[filter e],[outList f],[debug g]), result='DATA                          000LH 040020011222        666.00 EUR  A310-300
DATA                          000LH 040020020119        666.00 EUR  A310-300
DATA                          000LH 040020020216        666.00 EUR  A310-300
DATA                          000LH 040020020316        666.00 EUR  A310-300
DATA                          000LH 040020020413        666.00 EUR  A310-300
'

Because parameter g is set to true, trace files were created and their filenames are logged. Because an output list has been specified, containing the rows of output table DATA the result of the function itself - a fix record format - can be ignored or used for bug tracking purposes.

Result Processing

In this example, the values of output table DATA were added to the list outList. Every element in that list is a complete row of the table DATA. The single values must be 'extracted' by yourself later on.

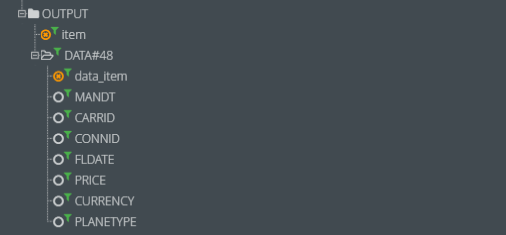

The example profile does that in node OUTPUT.

images/download/attachments/44944003/sap_rfc_2-version-2-modificationdate-1582512237290-api-v2.png

In order to enter the node OUTPUT as often as there are entries in the list, the number of values is saved to a variable of type Integer in field readSize. This variable is used as path in node OUTPUT. The calculation field item always removes the first entry from that list outList using the function remove from list, all subsequent functions use the value of this field for further processing (using destination field item). Are more than one field or table added to the result (by saying so using parameter e) the different lines must be 'distributed' over the corresponding nodes. For this reason - even if it is not needed in this particular examples - there is a function on node OUTPUT.

1) starts-with( a, b )
	a	destination: item
	b	constant: DATA

If the condition is met, the node will be entered and the calculation field data_item will cut away the first 30 characters of the row to let the line start with the first data field of the response.

All subsequent fields are cutting the needed part out of this line using the function substring( a, start [,length] ) to eventually continue with the data conversion using other functions. Field FLDATE is shown here as an example:

1) substring( a, start [,length] )
	a	destination: data_item
	b	constant: 11
	c	constant: 8

2) create date(a, [adj. template b], template c, d [, force-empty e])
	a	result: 1
	b	constant: yyyyMMdd
	c	constant: dd.MM.yyyy
	d	constant: empty
	e	constant:

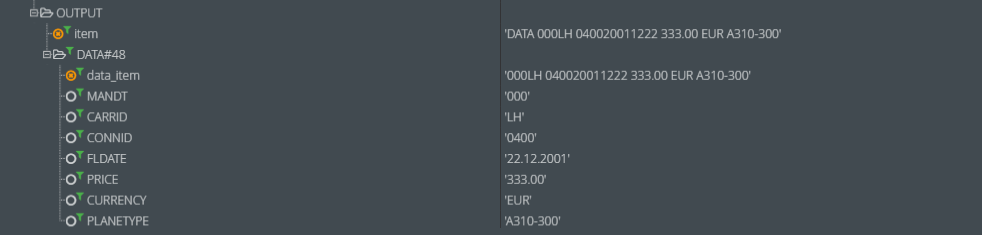

An exemplary result of a node OUTPUT can be seen in the following screenshot.

images/download/attachments/44944003/sap_rfc_3-version-2-modificationdate-1582512266510-api-v2.png

Remarks

Following the profile, this example is based on: Package-SAP RFC Call Example RFC_READ_TABLE.pak
