Dynamic Selection Values
We have already shown how to define static selection values ('allowed values')
The following describes how this can also be done dynamically with data profiles. You can use the same data profile that we have already described. It is only shown separately here for clarity.
We want to provide the field order_number of the form profile with selection values.
Settings of the Data Profile
All previously described settings for the data profile are identical. The only difference is the destination structure.
Destination Structure of the Data Profile
The node containing the data must always be called dataProvider (exactly like this) and must have value 1 in node attribute Maximum . Below that, there are two possibilities to build the structure.

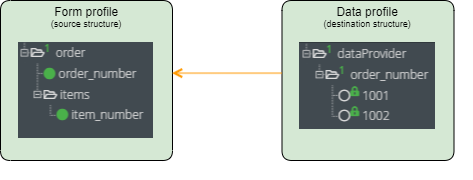

Possibility 1
In this variant, the attribute Maximum for node order_number must have the value 1.
The selection values generated in the data profile are assigned via a node with the same name as the field to be supplied in the form profile, in this case order_number (suffixes #xxx are ignored, so order_number#2, for example, would also be a valid node name).
The field names under this node generate the actual values, which are in the end sent to the form profile by the form (here 1001 or 1002).
The field values generate the label names, i.e. the selection values you see in the form.
(→ see examples)

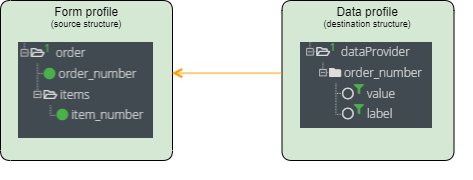

Possibility 2
In this variant, the attribute Maximum for node order_number should have the value 99999 .
The selection values generated in the data profile are assigned via a node with the same name as the field to be supplied in the form profile, in this case order_number (suffixes #xxx are ignored, so order_number#2, for example, would also be a valid node name).
The actual values that are in the end sent to the form profile by the form (1001 or 1002 in the example linked below), are specified as values in a field value (exactly like this).
The label names, i.e. the selection values that you see in the form, are given as values in a field label (exactly like this).
The Path attribute of the node (here order_number) can be used to control the number of values to be generated.
(→ see examples)
Integrating Data Profile in Form Profile
The integration of the data profile is done exactly the same way as already shown.

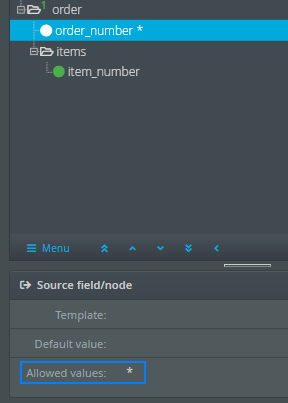

In addition, the affected field in the source structure of the form profile (here order_number) must have the value * in attribute Allowed values.
(→ see examples)
