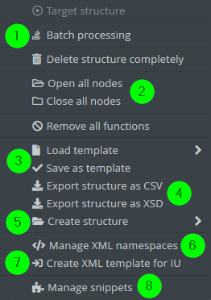

Destination Structure Menu

(1) Here you can efficiently change attributes of the structure. See section Batch Processing.

(2) You can open or close all nodes of the destination structure (see plus and minus symbols).

(3) Here you can load or create internal (and client-specific) templates.

(4) Creates an XSD schema file without namespaces or a Lobster_data CSV structure template. See sections Structure Template in CSV Format, XML to XSD and Structure Import.

(5) You can create a structure from a file analysis or a web service SOAP request.

(6) Refers to an XML destination structure. Here you can manage your XML namespaces. If there (still) are entries (prefix and URL) in one or more attribute fields XML namespace (e.g. scm=http://lobster.de/lobster_scm), you can extract those into your table with option Extract namespaces (context menu). After that, only the respective prefixes will be left in the affected attribute fields.

(7) See the Integration Units XMLTemplateParserUnit and ZUGFeRD (IU).

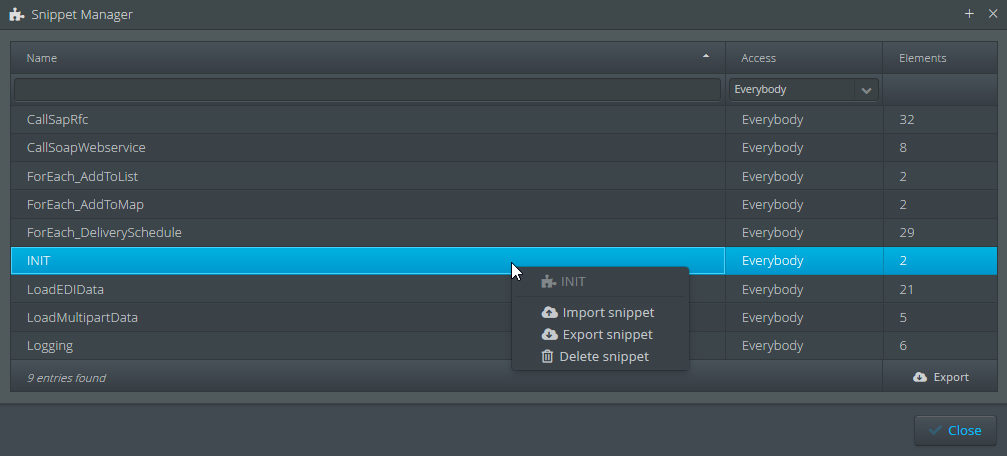

(8) Previously created partial templates (snippets) can be managed in another dialogue.

Note: For an overview of structure templates see section Working with Templates.
