DatevLodasIU
|
Group |
|
|
Function |
This Integration Unit can be used to generate a DATEV LODAS interface file from the destination structure. |
Description
Introduction: Integration Units. Set the Content in the Content settings of a Response Route in phase 6 to Output of IU.
This Integration Unit can be used to generate a DATEV LODAS interface file from the destination structure.
The detailed structure of LODAS files can be found in the corresponding interface manual of DATEV.
Parameter Description
The following parameters are used to indicate which nodes in the destination structure contain the data for the various LODAS sections.
The Satzbeschreibung section is mandatory in LODAS and is automatically generated by the Integration Unit. It contains the structure description of the individual tables in the form of record types. For this purpose, the nodes Bewegungsdaten, Stammdaten and Entfernen must each contain subnodes table_<table name>. See example below.
|
Parameter Name |
Default Value |
Description |
|
Data section node |
Bewegungsdaten |
Use the default value. The node Bewegungsdaten in the destination structure has to contain the data for the LODAS file section Bewegungsdaten . Note: This section is optional in LODAS. One of the sections Stammdaten or Bewegungsdaten must be used. |
|
General section node |
Allgemein |
Use the default value. The node Allgemein in the destination structure has to contain the data for the LODAS file section Allgemein . Note : This section is mandatory in LODAS. |
|
Master data section node |
Stammdaten |
Use the default value. The node Stammdaten in the destination structure has to contain the data for the LODAS file section Stammdaten . Note : This section is optional in LODAS. One of the sections Stammdaten or Bewegungsdaten must be used. |
|
Removal section node |
Entfernen |
Use the default value. The node Entfernen in the destination structure has to contain the data for the LODAS file section Entfernen . Note : This section is optional in LODAS. |
|
Text section node |
Hinweistext |
Use the default value. The node Hinweistext in the destination structure has to contain the data for the LODAS file section Hinweistext . Note : This section is optional in LODAS. |
Example

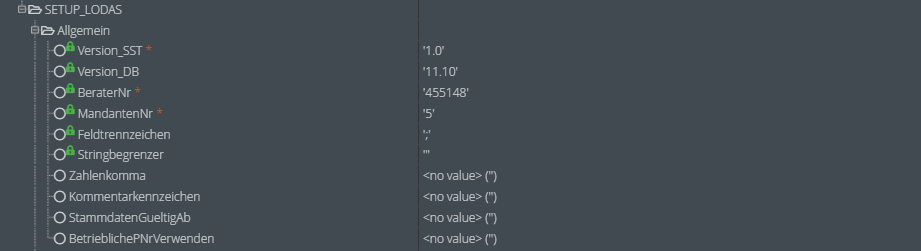

Let's assume the following destination structure (here filled with data).
The Integration Unit then creates the following file.
[Allgemein]Version_SST=1.0Version_DB=11.10BeraterNr=455148MandantenNr=5Feldtrennzeichen=;Stringbegrenzer='Zahlenkomma=Kommentarkennzeichen=StammdatenGueltigAb=BetrieblichePNrVerwenden=[Satzbeschreibung]1;u_lod_bwd_buchung_standard;abrechnung_zeitraum#bwd;bs_nr#bwd;bs_wert_butab#bwd;la_eigene#bwd;pnr#bwd;[Bewegungsdaten]1;01.12.2020;1;0,07;14;17;1;01.12.2020;1;5,57;14;45;1;01.12.2020;1;0,47;14;68;1;01.12.2020;1;0,47;14;75;1;01.12.2020;1;3,75;14;79;1;01.12.2020;1;0,02;14;89;1;01.12.2020;1;1,10;14;102;1;01.12.2020;1;1,58;14;103;1;01.12.2020;1;0,25;14;119;1;01.12.2020;1;0,50;14;131;1;01.12.2020;1;0,83;14;134;[Hinweisdaten]My text...In the data line in section Satzbeschreibung you can see the first value 1. This is the record type that is also referenced in section Bewegungsdaten. It is automatically generated from the first table_ node. Another table_ node would create record type 2.

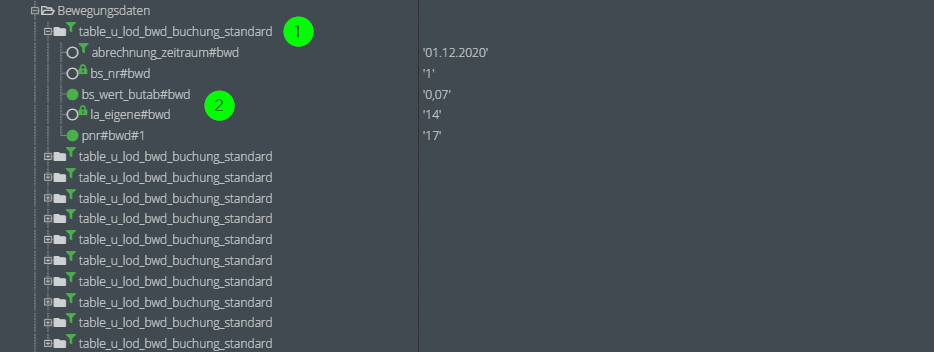

The second value in the line is the table name, see (1) in the screenshot.
The remaining values are the field names, see (2) in the screenshot.
