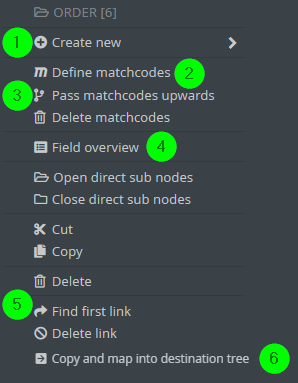

Context Menu (source structure)

(1) New fields, nodes and database nodes can be created here. If you create a new database node, you can select the alias of a connected database and a table from that database. The structure of the database table will then be represented in the source structure node. See also section Phase 4 - SQL Execution.

(2) Match codes can be defined here.

(3) If a node (or a field) has match codes and is located in one or more parent nodes, those match codes can automatically be entered in all parent nodes.

(4) The field overview provides a simple overview of, for example, the data types and lengths of all fields.

(5) Finds the first field in the destination structure (there can be more than one) onto which this field is mapped. You can also delete all mappings of this source structure field. See also section Search and Find.

(6) The node marked in the source structure is completely transferred to the destination structure. All its fields of the same name are mapped and paths are set to all nodes of the same name.
