Content Settings

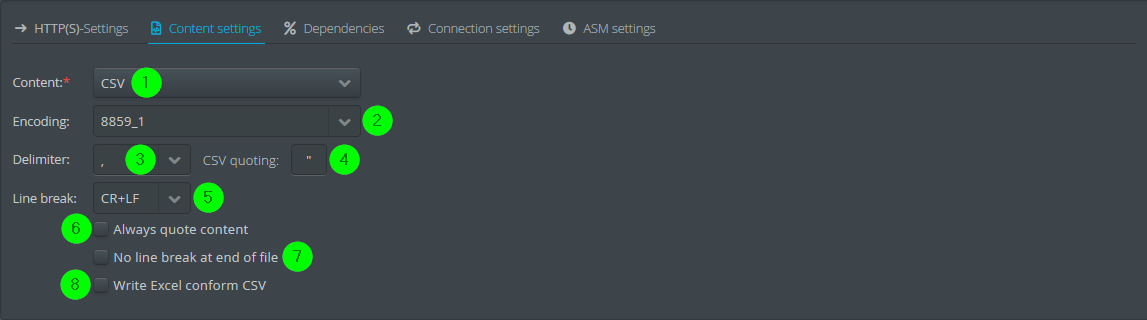

(1) Decides which content is to be output in the Response Route and/or in what format. See section Content Settings - Details.

(2) The encoding of the output data.

(3) The delimiter character between field values (only relevant for content type CSV). 0x = hexadecimal values, NL = newline.

(4) The quoting character for content type CSV (e.g. to mask/escape the CSV delimiter character (3), blanks or linebreaks in field values). Only double or single quotation marks makes sense. To avoid quoting, please use the Integration Unit CSVWithoutQuotesIU. See also (6).

(5) The line break character.

(6) All field values (not only blanks and delimiters) are put in quotes (4).

(7) If this checkbox is set, the file will not end with a line break (5).

(8) Only relevant for content type CSV. The generated CSV format complies with the conventions used by Microsoft Excel.

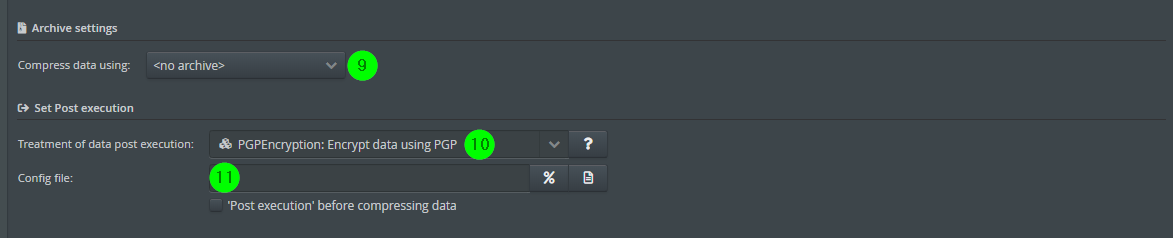

(9) Specifies whether and how the output data should be compressed. You can specify a (AES) password for ZIP and 7z, however, with 7z an AES password is always changed back to a normal password after saving. Note: The name of the file in an archive of the Response Route with the position number n (in the list of Response Routes) can be set via the system variable VAR_SYS_ARCHIVE_ENTRY_n.

(10) Selection of a postexecution class. Note: The documentation of a selected class can be obtained via the question mark icon.

(11) The path to the configuration file of the postexecution class (10) (if necessary). Sometimes you need to enter a direct configuration string instead, but this will be documented in the respective class.

(12) Only relevant for content type Fix record. If set, line breaks (CR and LF) in field values are replaced by blanks.
