Calling a Stored Procedure

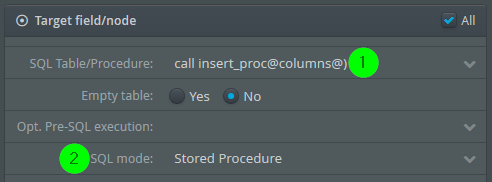

In addition to the possibility to call a stored procedure in phase 3 using the function call db procedure a, alias b,c,d,e,f, there is the option Stored Procedure in (2). If this mode is selected, field (1) does not expect the table name, but the command to call the stored procedure. However, the call of the stored procedure will take place in phase 4, in this case. Suppose you want to call a stored procedure insert_proc inside a MySQL database. In that case, the syntax is

The placeholder @columns@ must be written exactly like this. This particular wildcard is resolved at runtime and then contains the values of all active fields of that node that are not calculation fields and that have a non-empty SQL column name. The SQL column name itself does not master, but it cannot be empty. The order of the parameters results from the order of the fields in the node. The types of the parameters correspond to the field types.

Note: The syntax depends on the database type. The call command used above, for example, is MySQL-specific. For other database systems, you may need another command, e.g. execute (Oracle). Please talk to your database administrator for details. For MSSQL you can also find an example in the documentation of function call db procedure a, alias b,c,d,e,f.
